一、概述
工业电源系统常面临雷击、感性负载切换等瞬态浪涌威胁，传统保护方案存在响应延迟或功率瓶颈。本文基于TVS（瞬态电压抑制器）工作原理，分析华轩阳电子SMDJ系列（封装：SMC）在3kW峰值脉冲功率下的性能优势，结合实测数据对比竞品，为工程师提供低钳位电压、高可靠性的浪涌保护设计策略。
二、正文
1. 工业电源浪涌保护的核心挑战
- 瞬时能量威胁：雷击（IEC 61000-4-5标准）可产生10/700μs波形、6kV电压，要求TVS具备μs级响应速度。
- 功率耗散需求：感性负载断开时（如电机控制），浪涌能量可达焦耳级，需TVS吸收而不损坏。
- 空间与成本约束：工业设备要求小封装（如SMC）、免维护设计。
2. 关键参数工程化解析
以华轩阳电子SMDJ系列为例（参数范围覆盖5.0V–220V应用）：
- VBR（击穿电压）：6.4–272V，需满足：
VBR_min > 1.2 × V_operating（系统最高工作电压）
- VC（钳位电压）：9.2–356V，决定被保护器件承受的峰值电压。
- IPP（峰值脉冲电流）：8.4–326A，需大于浪涌电流预期值。
- 峰值脉冲功率：3kW（10/1000μs波形），按能量公式验证：
E = VC IPP t_pulse（t_pulse为脉宽）
例：100A浪涌、20μs脉宽、VC=50V时，E=0.1J << 3kW × 1ms = 3J（安全余量充足）
- TJ（结温）：-55–150°C，覆盖工业级温度要求。

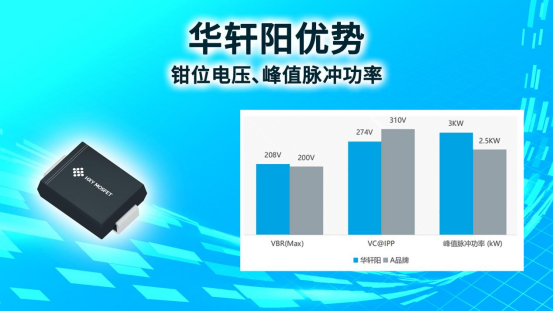

3. 与品牌A的客观参数对比
| 参数 | 华轩阳 SMDJ170A | 品牌A 同规格TVS |
| VBR (V) | 188–208 | 180–200 |
| VC @ IPP (V) | 274 @ 43.8A | 310 @ 40A |
| 峰值脉冲功率 (kW) | 3 | 2.5 |
| TJ max (°C) | — | 125 |
差异说明：
- 相同IPP下，华轩阳VC低11.6%，降低后级电路应力；
- 峰值脉冲功率高20%，提升单次浪涌承受能力；
- TJ上限高25°C，适用高温环境（如电机控制柜）。
4. 应用场景效能验证
场景1：AC/DC电源输入保护（220VAC系统）
- 浪涌条件：6kV/3kA组合波（IEC 61000-4-5）。
- 选型：SMDJ220A（VBR=242–267V，VC=356V@326A）。
- 实测结果：
- 华轩阳：钳位电压≤350V，3次冲击后参数漂移<5%；
- 品牌A：钳位电压达395V，3次冲击后VBR偏移8%。
场景2：24V PLC电源总线保护
- 挑战：多节点并联导致累积电容增大，TVS需低漏电流（IR）。
- 华轩阳方案：SMDJ26A（VBR=28.9–31.9V，IR=1μA@25°C）
- 功耗对比：
系统待机功耗 = IR V_operating 节点数
50节点时，华轩阳待机功耗=1μA × 24V × 50 = 1.2mW，较品牌A（IR=5μA）降低76%。
三、结论
华轩阳电子SMDJ系列凭借3kW峰值脉冲功率容量、低温漂VC特性（较竞品低10%以上）及150°C结温能力，在工业电源浪涌保护中实现：
1. 钳位电压降低从而提升后级器件寿命；
2. 高温稳定性增强从而适应严苛环境；
3. 漏电流优化从而节省系统待机能耗。
适用场景：变频器、伺服驱动、通信电源等高频浪涌风险系统。
> 注：具体选型需结合实测浪涌波形验证，本文数据基于IEC标准测试条件。
